Taisei Corporation Group Next-Generation Technology Research Institute “T-FIELD / SATTE”

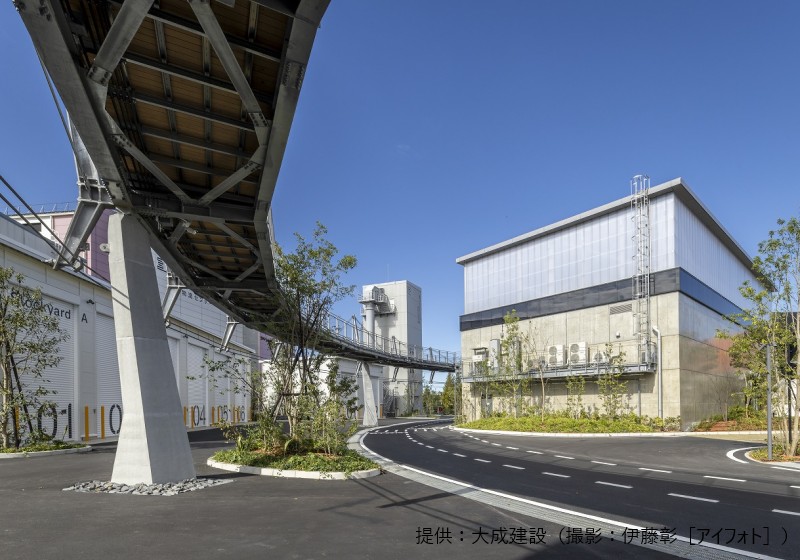

The visitor corridor (bridge) was constructed within the site of the Taisei Corporation Group’s Next-Generation Technology Research Institute, located in Satte City, Saitama Prefecture, Japan.
An experimental testing field is situated beneath the corridor. To separate visitor circulation from ground-level activities, the structure was designed under the fundamental requirement that no large structural members—such as beams or trusses—be placed beneath the corridor.
Overview
- Structure

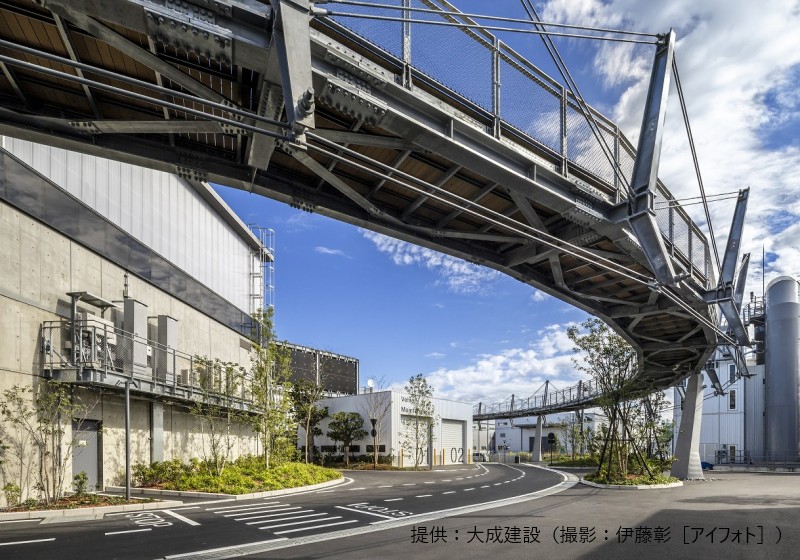

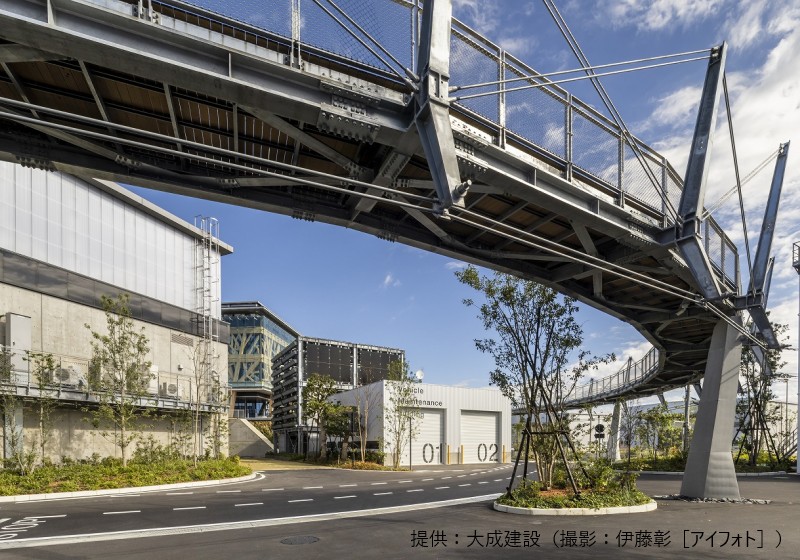

- Ring girder based on a circular plan, combined with an inverted Fink truss system
- Scale
- Outer ring radius: 35 meters / Total circumference: approximately 170 meters
- Construction Period
- Year 2024
- Scope
- Production、construction
- Cable
- Full Locked Cable PV115 Ø35 mm (manufactured by PFEIFER Structures)
- Tie rod
- High-Tension Tie Rod NHT690 Ø25 mm, Ø32 mm (manufactured by Gotetsu Sangyo Co., Ltd.)
- Location
- Saitama Prefecture
- Design
- Taisei Corporation
- Construction
- Taisei Corporation
